5x10 cnc router

If you’re looking for a large CNC router, there are several options, such as 4×4 and 4×8 models. If you need an even larger working area, you can go for a 5×10 CNC router. These size routers are very expensive, so you need to search carefully to find the best 5×10 CNC router for you.

To make things easy, we’ve conducted reviews of the top 5×10 CNC routers available. We’ll take a close look at everything you need to know before making a purchase, including the price, stability, accuracy, and usability of each one. Before we get into the top machines, though, let’s take a quick look at why a 5×10 CNC router could be a valuable addition to your workshop.

Why Use a 5×10 CNC Router?

Having a large CNC router can be hugely beneficial to your business, as they can help you efficiently ramp up production speeds. Simply put, a 5ft by 10ft CNC router is one of the biggest routers you can get and is designed for manufacturing large pieces and for processing a large number of workpieces simultaneously.

The next size down is a 4×8 CNC router, so with a 5×10 you get several feet worth of extra working space, which can make a big difference when it comes to production rates.

5×10 CNC routers are most widely used in the furniture-making industry for creating products like doors, cabinets, tables, and wardrobes. You can do similar kind of work with a 4×8 or even a 4×4 router, but with a 5×10 you can process larger workpieces faster and with less waste, meaning you can save both time and money – essentials to any successful business.

For example, Cutting Edge CNC, a woodworking business in Indiana, was able to increase its production rate by as much as 40% with the help of a 5×10 CNC router table.

These large CNC routers are also widely used in the mass production of musical instruments like pianos, in the advertising industry for making large signboards, and in the mold industry for the production of both metal and non-metal molds.

Things to Consider When Buying a 5×10 CNC Router

The main thing to consider when purchasing a 5×10 CNC router is the price. The more affordable CNC machines can be bought for under $10,000, but on the other end of the scale, there are machines that go for over $30,000.

It goes without saying that the more you pay, the high quality a machine you’re going to get. For example, more expensive routers are typically built better, so they’re more sturdy and therefore more precise, and can operate faster, meaning increased efficiency. It’s also important to consider the level of support offered by the manufacturer when making a purchase, as some require you to pay for training.

The only real limitations of 5×10 CNC routers are the high cost and large size, which means they’re almost exclusively used in industrial settings. They’re also more expensive and time-consuming to maintain than smaller routers.

The Best 5×10 CNC Routers Reviewed

Now, let’s take a look at the top 5×10 CNC routers on the market.

AvidCNC PRO60120 5×10 Router

  • Price: from $7,195

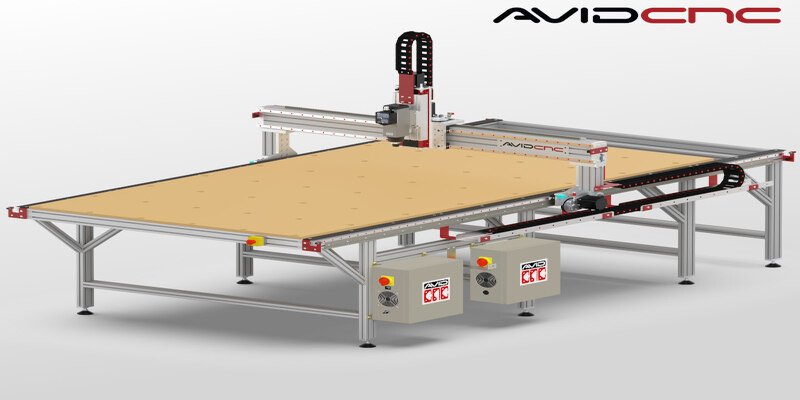

AvicCNC 5x10 CNC Router

The AvidCNC PRO60120 5×10 is one of the most affordable 5×10 CNC routers you can buy. However, while it may cost less than most other 5×10 routers, that doesn’t mean it doesn’t offer high quality machining capabilities.

One of the highlights of the machine are the premium linear motion components, including profile linear guide rails, AvidCNC’s Pro rack and pinion drives on the X and Y axis, and a ballscrew z axis. The result? High cutting speeds and fantastic rigidity, allowing you to precisely cut a variety of materials, ranging from plywood and aluminum to high density plastics and MDF.

That’s not the only benefit, though. These high quality components also make for easier assembly and tuning, which is an important factor for such large machines that can often be difficult to put together and maintain. Plus, it comes with easy step-by-step assembly instructions to help you get started.

This 5×10 CNC machine has an all-metal design with a heavy duty aluminum extrusion and steel plate construction, so it ranks really high in terms of stability and durability and is perfectly suited to industrial environments.

As is the case with most 5×10 CNC routers, you can configure your purchase of the PRO6-120 with certain add-ons. For example, you can upgrade from the Nema 23 3/8” shaft to a Nema 34 1/2” shaft, add extended gantry width, and choose between Z axis travel of 8/8”, 12/8”, and 12/12”.

One thing to bear in mind is that increasing the gantry height will reduce the stiffness of the machine, so this isn’t recommended if you’re mostly cutting hard materials or sheet goods.

StyleCNC 5×10 Router

  • Price: from $14,200

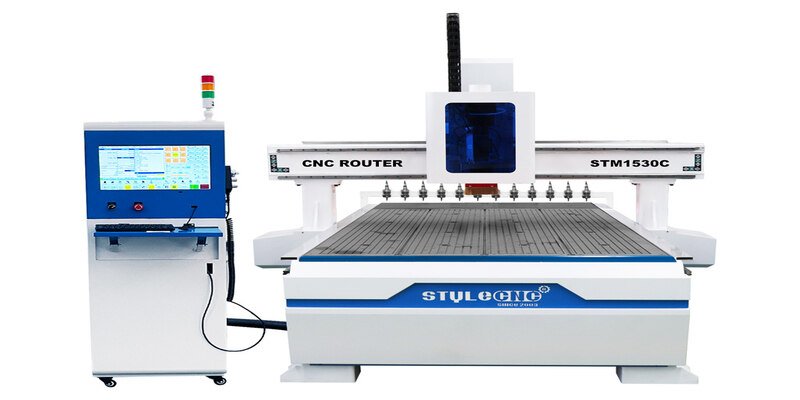

StyleCNC 5x10

StyleCNC is one of the most popular manufacturers of CNC routers and is known for offering reliable quality, and that’s certainly what you get with the StyleCNC 5×10 router

The bed of this large CNC router is made of a strong, heavy duty steel tube structure that’s designed to relieve stress and offer increased rigidity, which results in fantastic stability while woodworking. That stability in turn makes for high precision cutting.

It uses the popular and widely used Italy HSD spindle, which is extremely reliable and has service departments all over the world in case your CNC spindle needs servicing. The spindle uses an extremely efficient air cooling system, so you don’t need to use a water pump, and it’s extremely durable even when working continuously in demanding conditions.

Another high performance component is the Yaskawa servo motor, allowing the machine to run smoothly with no vibration even when on low speeds, increasing precision. This servo motor also has a high overload ability to help it handle tough jobs.

We also like the linear ATC (automatic tool changing) system that contains 6, 8, 10, or 12 bits, meaning the tools can be changed very quickly and reliably. The locating bearing, ball screw and linear slideway are all maintained by an auto-lubrication system to help the router keep running smoothly.

Finally, the StyleCNC 5×10 is compatible with a variety of popular CAD/CAM software, including the likes of Type3, Artcam and Castemate, so you can take your pick depending on your preference.

ShopBot PRSalpha 120-60-8 5X10 Router

  • Price: $26,530

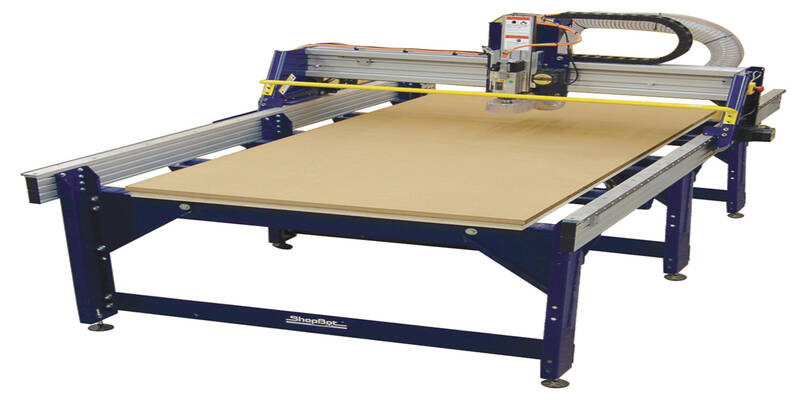

ShopBot 5x10 CNC router

ShopBot is another brand that’s popular among CNC enthusiasts, and the PRSalpha 120-60-8 is definitely one of the most impressive 5×10 CNC routers we’ve come across.

It’s incredibly precise, with a step resolution of 0.004” and a positional accuracy of +/- 0.02”. With a seriously impressive cutting speed of up to 600 inches per minute and rapid transit speeds of 1,800 inches per minute, it has all the power you need for industrial production.

We also like the fast, closed-loop Vexta alphaStep motors with low-backlash gear heads on each axis. The alphaStep system monitors motor shaft positions, helping to synchronize signal and motion for smooth machining.

The bed is made of steel with bolted connections for sturdy, vibration-free machining, and the gantry and Y-rails are constructed of heavy aluminum extrusion to prevent flexing.

This 5×10 CNC router comes with a sealed control box that you can mount on the table for easy access, and it comes with three different software. These are the CAD/CAM software VCarve Pro, ShopBot Editor for editing files, and the ShopBot3 motion control software, so you have everything you need to get started.

Tork SS-3 5×10 Router

  • Price: from $34,997

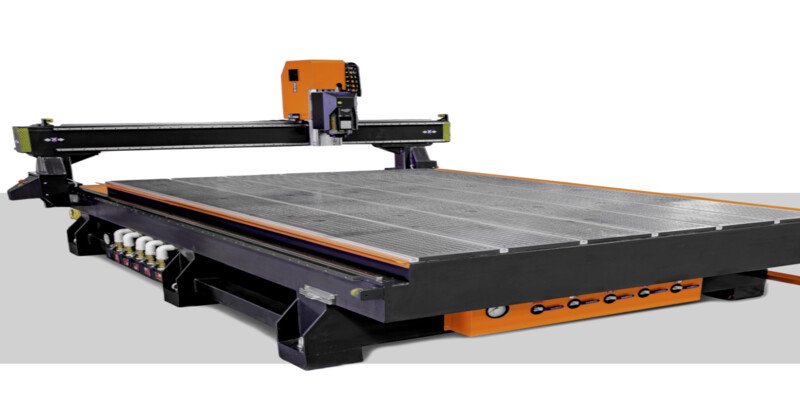

Tork 5x10 CNC router

The Tork SS-3 5×10 is an example of a premium 5×10 CNC router that’s made for high-intensity industrial settings.

This is a seriously powerful machine with a helical rack and pinion drive system on both the X and Y axes, which provide incredibly smooth motion and tight control, resulting in extremely precise, high-quality cuts. The frame and gantry both have a welded steel construction for optimum rigidity, meaning this router can handle even the most demanding of projects and is perfect for fabricating sheet metal.

Another benefit of going for this 5×10 router is that it comes with a fantastically intuitive all-in-one PC control station with a powerful Intel processor, dual speakers, and an HD touchscreen for easy use.

This machine runs off Tork’s own CNC motion controller software, Tork Touch, which is super flexible, expandable, and responsive. It’s a really impressive CNC controller software, with accurate tool path compensation for different size tools, a dynamic toolpath display, and the ability to easily view, rotate, pan and scale the toolpath to check the g code is generating the correct path.

There are several configuration options to choose from when buying the Tork SS-3 5×10. You can upgrade the 4HP ATC spindle motor to a 6HP or 12HP one, and you can also upgrade the ATC tool racks, vacuum pumps, dust collection system, and micro misting system.

CAMaster Panther 5×10 Router

  • Price: Upon quote

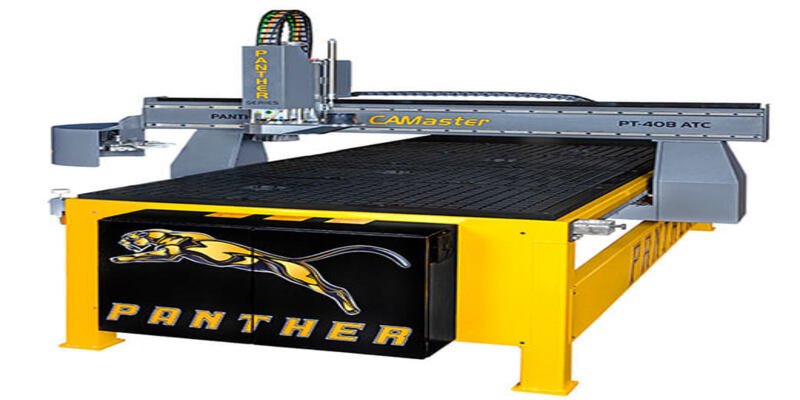

CAMaster Panther 5x10 CNC router

Another top-quality 5×10 CNC router is the CAMaster Panther. One of the main strengths is undoubtedly its rigidity, with a heavy-duty steel construction, made up of a welded steel frame with a steel gantry and steel gantry supports, that results in vibration-free machining.

Like the Tork SS-3, this industrial 5×10 CNC router table has a helical rack and pinion drive system for smooth operating and high dimensional accuracy. Helical gears offer faster acceleration and greater robustness than straight cut gears, making them perfect for industrial CNC work.

Another benefit of going with CAMaster Panther is that there are servo motors with planetary gearboxes on all axes for increased speed and power. It’s rated at 1,000 IPM cut speed and 2,000 IPM rapid traverse speed, so it’s super efficient for mass-producing parts.

If you choose this router, it’s worth considering choosing to upgrade to the ATC spindle with an eight-tool rotary carousel, as this makes it a lot quicker to change tools and therefore results in increased cycle times and more efficient machining.

This 5×10 CNC router comes with a control PC window with a 19” LED monitor that runs Windows 10 PRO for easy operation.
